Reflow Sn plating for low insertion/removal force
PIC plating
- High conductivity high／High heat-resistant
- Plating
In comparison with conventional reflow Sn plating (conventional plating), PIC plated materials
have a lower dynamic friction coefficient and superior electrical reliability. PIC plating is
therefore expected to be deployed widely as a high-performance plating technology for
next-generation terminals for automotive applications.
It is possible to pre-plate copper and copper alloy strips, and post-plating of pressed
terminals.
※Plating on pressed terminals is carried out by licensed companies outside the MMC group.
Main features
- Reduces the insertion force of the connectors. When used on both pin and socket terminals, it reduces the dynamic friction coefficient by 40% compared to conventional reflow tin plating.
- Good electrical connection reliability. No increase in resistance even after heating test (120℃, 1000h).
Structure of PIC plating
In PIC plating, the shape of the Cu-Sn compound formed at the interface between the copper alloy and the tin plating layer is precisely controlled so that a portion of it is exposed on the surface, with pure tin existing in the gap between them. This gives it a distinctive multi-phase structure.

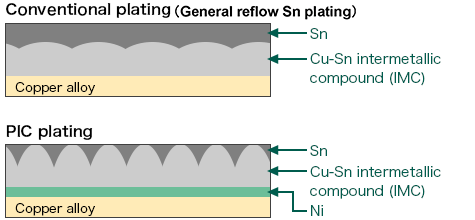

Cross sections of conventional plating and PIC plating
The white parts are Cu-Sn IMC

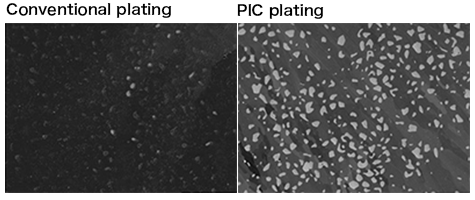

Surface images of conventional plating and PIC plating
(showing
the extrusion of Cu-Sn IMC on the surface)
Technical Data
Dynamic friction coefficient
PIC plating can reduce friction even when used on either pin or socket terminals. By using it
on both pins and sockets, the effect is even greater, reducing friction by about 40% compared to
conventional plating.
It is particularly effective in reducing friction on small terminals with low contact pressure.

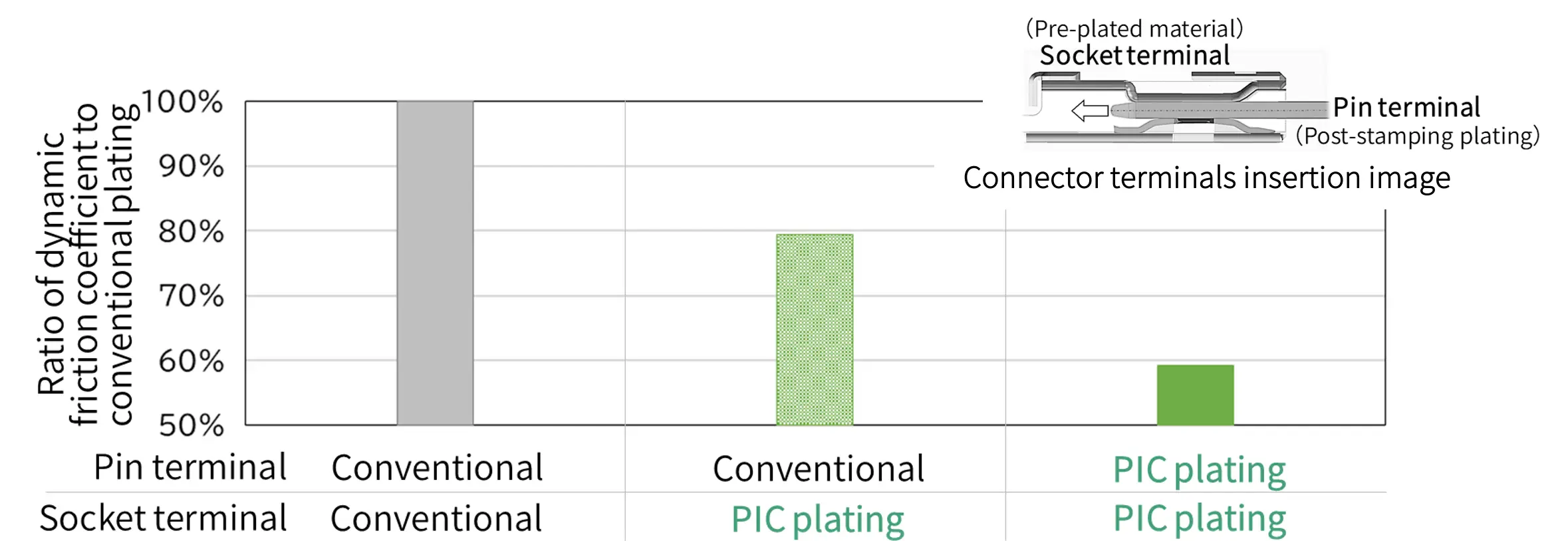

Dynamic friction coefficients for conventional plating and PIC plating
