    Characteristics

    • The rod is produced by the SCR process, resulting in fewer surface defects and excellent drawability.
    • The drawn wire is manufactured using high-quality copper rod as the base material.
    • We can accommodate a wide range of grades and sizes, including tough pitch copper, various copper alloys, and oxygen-free copper wire (ROX).

    ROX
    Mitsubishi Materials Corporation succeeded in manufacturing oxygen-free copper wirerod utilizing the SCR system for the first time in the world. Previously, oxygen-free wirerod wire and oxygen-free copper metals were manufactured using DIP forming or Extrusion. However, thanks to the SCR system, we can incorporate all manufacturing processes from melting to the finished wirerod in one continuous operation.

    View Brand

    Standard product Lineup

    Products CDA COMPOSITION (WT %) APPLICATIONS
    ETP COPPER C11000 O＝200～450ppm Copper Wire, Cable
    Winding Wire
    SILVER BEARING ETP COPPER - Ag＝～0.25% Trolley Wire・Messenger Wire
    Commutator Segment
    Electronic Components
    TIN BEARING ETP COPPER - Sn＝0.25～0.35％ Ultrafine Wire (wiring)
    OXYGEN-FREE COPPER
    （ROX-OF）    		 C10200 O≦5ppm
    O≦10ppm    		 Winding Wire
    Superconducting stabilizer
    SILVER BEARING OXYGEN-FREE COPPER
    （ROX-AG）    		 C10400
    C10700    		 Ag≧0.027％, O≦10ppm（C10400）
    Ag≧0.085%, O≦10ppm（C10700）    		 Commutator Segment
    Electronic Components
    CONTAINED COBALT & PHOSPHORUS
    （ROX-CPH）    		 - Co＝0.25～0.35％
    P＝0.05～0.15％
    Sn=0.15～0.25％    		 Automotive wiring harness
    Ultrafine Wire（wiring）
    Copper Wire, Cable
    Copper rough-drawn wires in various diameters and alloys also available.
    Technical Data

    Physical Properties（reference value）　※φ8mm is classified as Temper "F"

    Products Temper Diameter Tensile Strength
    MPa    		 Elongation
    %    		 Electrical
    Conductivity
    %IACS
    ETP COPPER F
    H    		 8
    2.6    		 235
    445    		 40
    2.5    		 101
    99
    SILVER BEARING ETP COPPER F
    H    		 8
    2.6    		 240
    455    		 40
    2.5    		 100
    99
    TIN BEARING ETP COPPER F 8 265 38 83
    OXYGEN-FREE COPPER
    （ROX-OF）    		 F
    H    		 8
    2.6    		 235
    445    		 40
    2.5    		 101
    100
    CONTAINED COBALT & PHOSPHORUS
    （ROX-CPH）    		 - - 450-550 5-10 70-80
    Packing style Diameter
    (mm)    		 Weight
    (tonne)    		 Outer
    DIA    		 Inner
    DIA    		 Height Figure

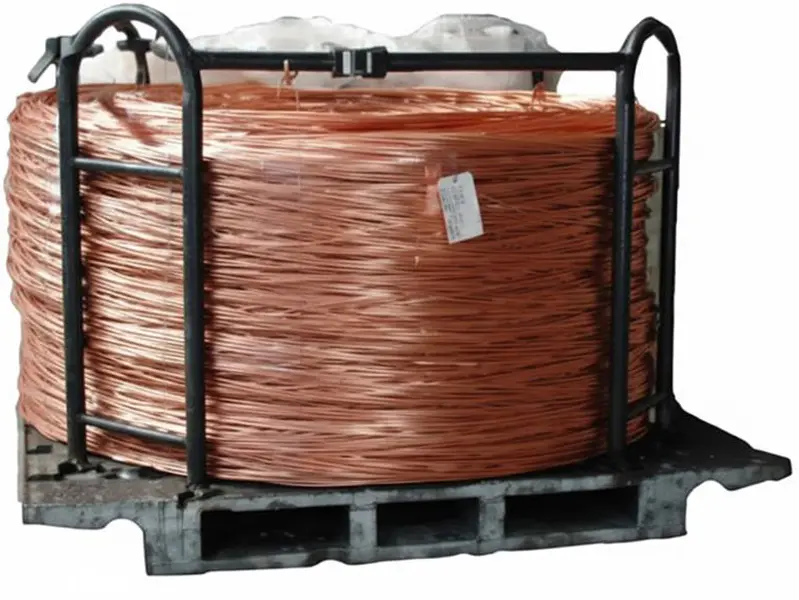

    Wirerod 8～22mmφ MAX 10 tons
    ※Diameter-dependent    		 2,200mm 1,100mm 1,050mm
    ※10 ton coil

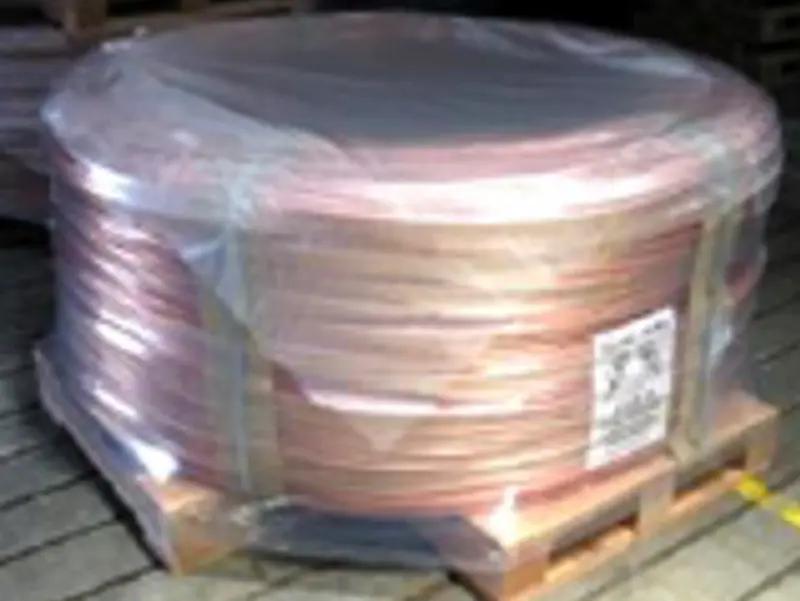

    Domestic

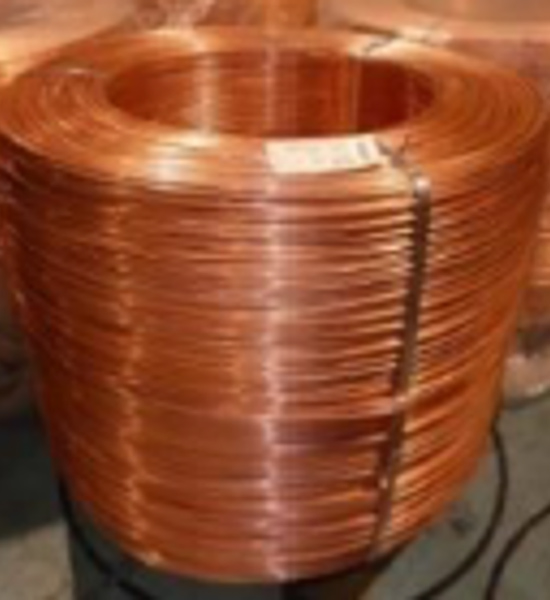

    Tight-coil
    wire    		 8～13mmφ 2 tons
    2.5 tons    		 1,000mm 600mm 800mm
    Domestic
    Export

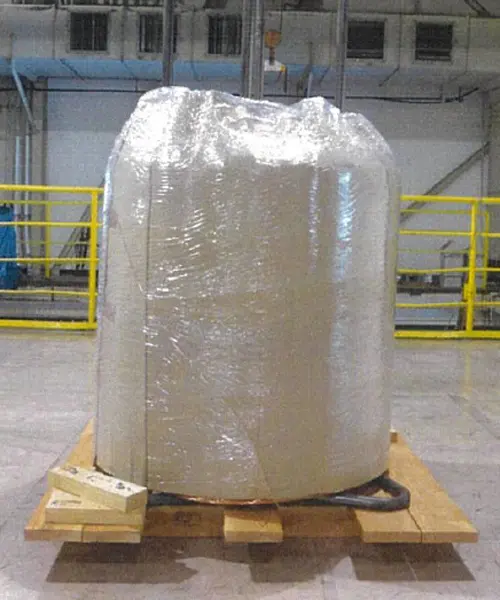

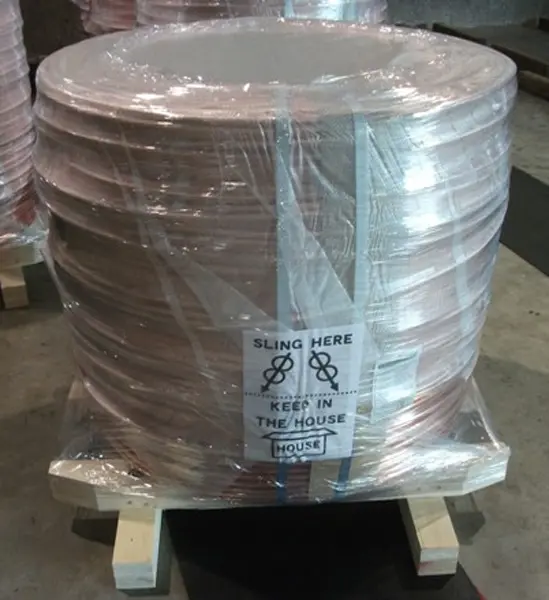

    Wirerod
    for Export    		 8mmφ 4.0 tons 1,800mm 1,100mm 800mm

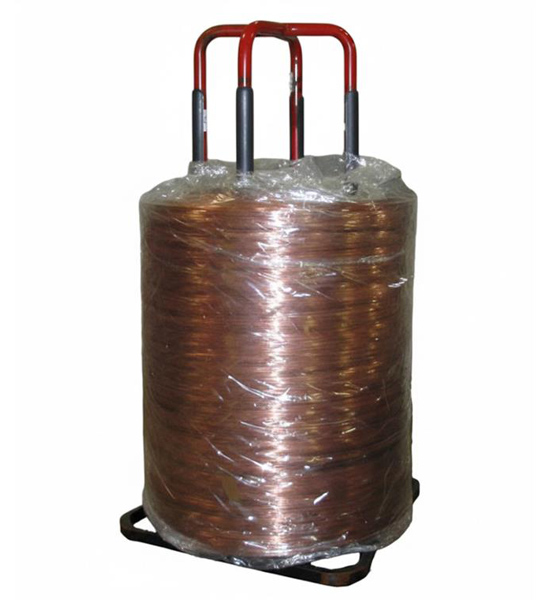

    Wire 2.6mmφ
    3.2mmφ    		 1.3 tons 950mm 580mm 1,300mm
    Domestic
    Export

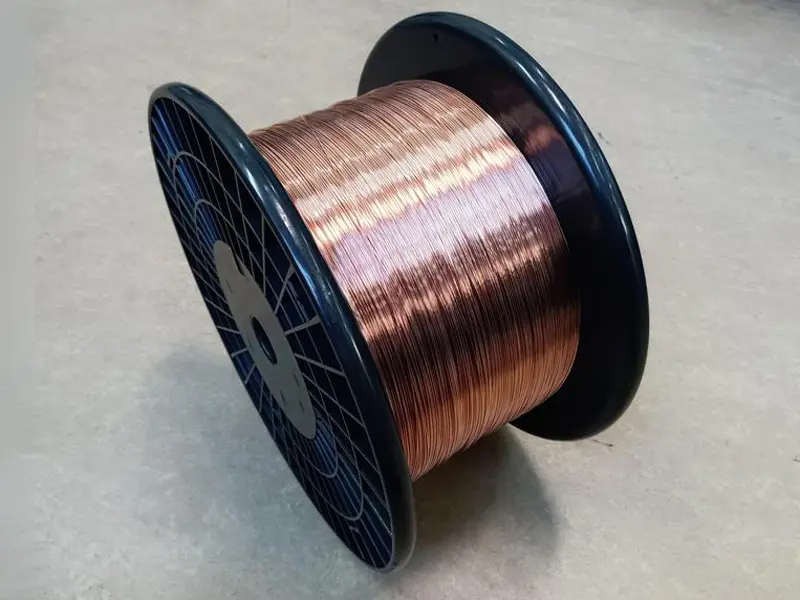

    Bobbin-wounded
    wire    		 0.9mmφ ～300kg TSB 600bobbin is used as standard
