wear-resistant copper alloy
UH13
- Corrosion resistance and wear resistance
It is a special high-strength brass bar with improved strength and wear resistance by solid solution strengthening and precipitation strengthening of Mn-Si intermetallic compounds.
Positioning map
Demand for higher-strength, more wear-resistant copper alloys is increasing as machinery and equipment continue to operate at higher speeds and performance levels. In addition, good machinability during production is also required. UH 13 is a lead-free copper alloy that combines high strength with excellent machinability, and can serve as a cost-effective alternative to stainless steel and bronze for components, contributing to overall cost reduction.
Main features
UH13 is characterized by high strength and excellent wear resistance.
Chemical composition
It shows chemical components of UH13.
| Cu | Al | Zn | Pb | Mn | Si | |
|---|---|---|---|---|---|---|
| UH13 | 62.0 | 3.0 | Rem. | <0.1 | 3.0 | 1.0 |
Technical Data
Physical properties
It shows physical properties of UH13.
| Property | Representative Value |
|---|---|
| UH13 | |
| Specific Gravity (293K) | 7.9 |
| Coefficient of Thermal Expansion (×10-6/K：293～573K) |
20 |
| Thermal Conductivity (W/(m・K)：293K) |
101 |
| Electrical Conductivity (%IACS:293K) |
23 |
Mechanical properties (Actual example: LD direction)
The table below shows the mechanical properties of UH13.
| Property | Representative Value |
|---|---|
| UH13 | |
| Tensile Strength (N/mm²) |
730 |
| 0.2% Yield Strength (N/mm²) |
500 |
| Elongation (%) |
10 |
| HV | 230 |
| HRB | 98 |
Wear resistance

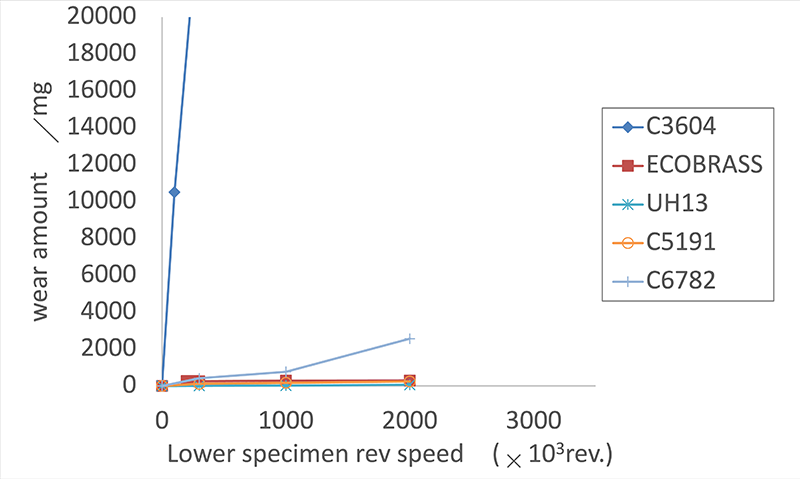

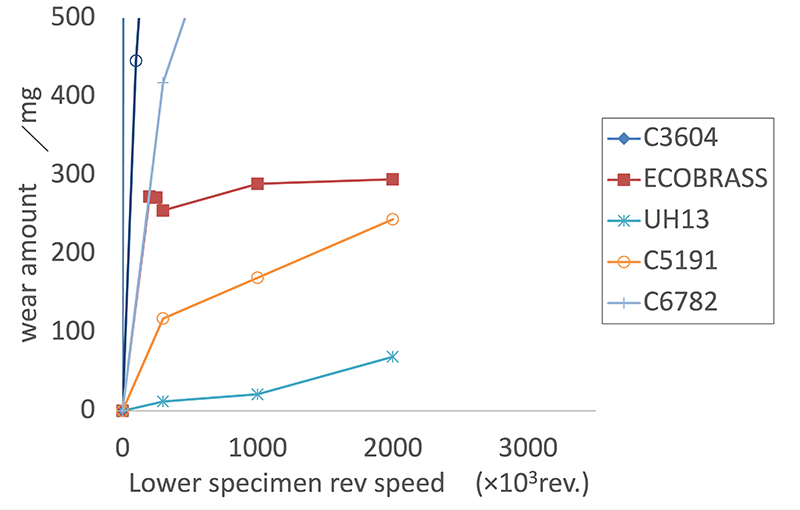

When referring to the wear test results in the Amsler type abrasion test (under lubrication), the reduced wear amount of UH13 is equal to or less than 1/2 of C5191, and it is possible to confirm the excellent wear resistance.
