Characteristics

The rod is produced by the SCR process, resulting in fewer surface defects and excellent drawability.
The drawn wire is manufactured using high-quality copper rod as the base material.
We can accommodate a wide range of grades and sizes, including tough pitch copper, various copper alloys, and oxygen-free copper wire (ROX®).

ROX®
Mitsubishi Materials Corporation succeeded in manufacturing oxygen-free copper wirerod utilizing the SCR system for the first time in the world. Previously, oxygen-free wirerod wire and oxygen-free copper metals were manufactured using DIP forming or Extrusion. However, thanks to the SCR system, we can incorporate all manufacturing processes from melting to the finished wirerod in one continuous operation.

Products Type

Copper rough-drawn wires in various diameters and alloys also available.

Standard product Lineup

Products	CDA	COMPOSITION (WT %)	APPLICATIONS
ETP COPPER	C11000	O＝200～450ppm	Copper Wire, Cable Winding Wire
SILVER BEARING ETP COPPER	-	Ag＝～0.25%	Trolley Wire・Messenger Wire Commutator Segment Electronic Components
TIN BEARING ETP COPPER	-	Sn＝0.25～0.35％	Ultrafine Wire (wiring)
OXYGEN-FREE COPPER （ROX®-OF）	C10200	O≦5ppm O≦10ppm	Winding Wire Superconducting stabilizer
SILVER BEARING OXYGEN-FREE COPPER （ROX®-AG）	C10400 C10700	Ag≧0.027％, O≦10ppm（C10400） Ag≧0.085%, O≦10ppm（C10700）	Commutator Segment Electronic Components
CONTAINED COBALT & PHOSPHORUS （ROX®-CPH）	-	Co＝0.25～0.35％ P＝0.05～0.15％ Sn=0.15～0.25％	Automotive wiring harness Ultrafine Wire（wiring） Copper Wire, Cable

Physical Properties（reference value）　※φ8mm is classified as Temper "F"

Products	Templer	Diameter	Tensile Strength MPa	Elongation %	Electrical Conductivity %IACS
ETP COPPER	F H	8 2.6	235 445	40 2.5	101 99
SILVER BEARING ETP COPPER	F H	8 2.6	240 455	40 2.5	100 99
TIN BEARING ETP COPPER	F	8	265	38	83
OXYGEN-FREE COPPER （ROX®-OF）	F H	8 2.6	235 445	40 2.5	101 100
CCONTAINED COBALT & PHOSPHORUS （ROX®-CPH）	-	-	450-550	5-10	70-80

Packing style	Diameter (mm)	Weight (tonne)	Outer DIA	Inner DIA	Height	Figure

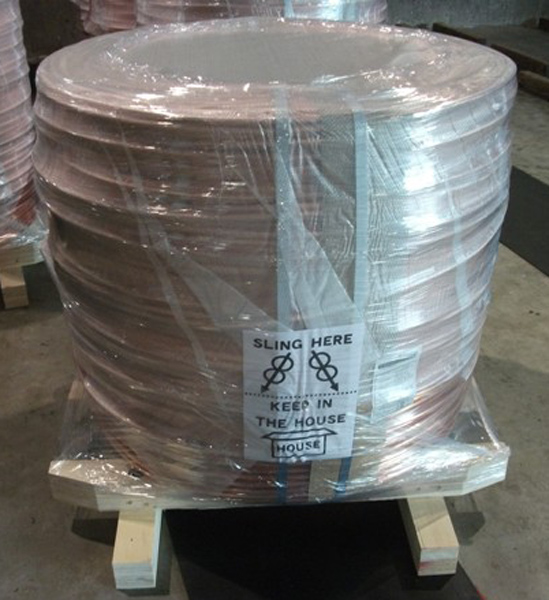

Wirerod	8～22mmφ	MAX10 tons ※Diameter-dependent	2,200mm	1,100mm	1,050mm ※10 ton coil	Domestic

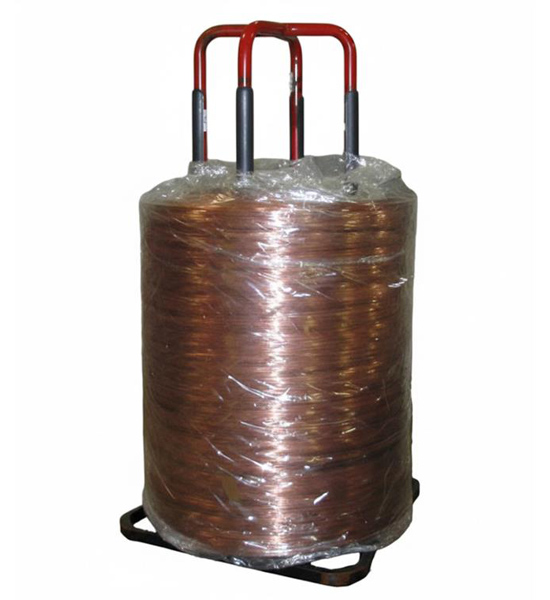

Tight-coil wire	8～13mmφ	2 tons 2.5 tons	1,000mm	600mm	800mm	Domestic Export

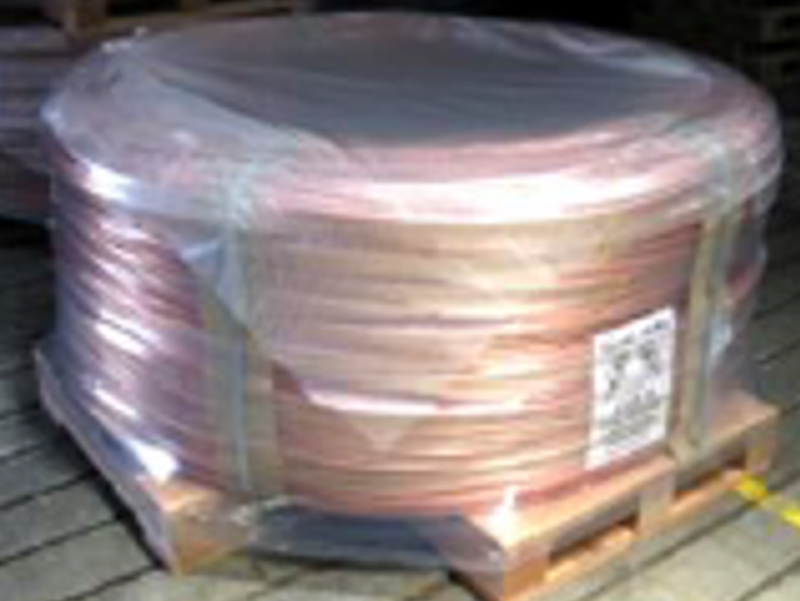

Wirerod for Export	8mmφ	4.0 tons	1,800mm	1,100mm	800mm

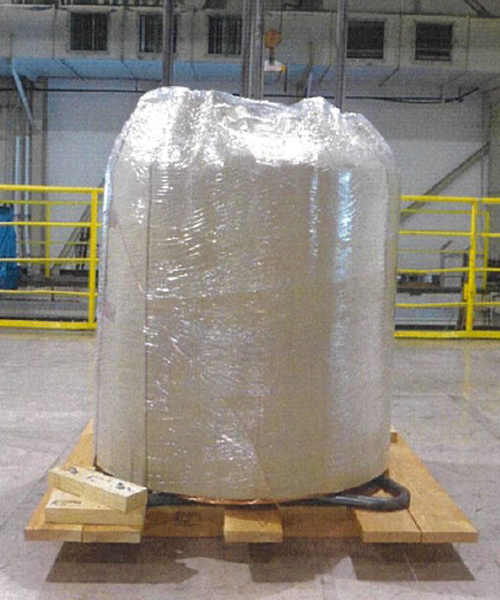

Wire	2.6mmφ 3.2mmφ	1.3 tons	950mm	580mm	1,300mm	Domestic Export

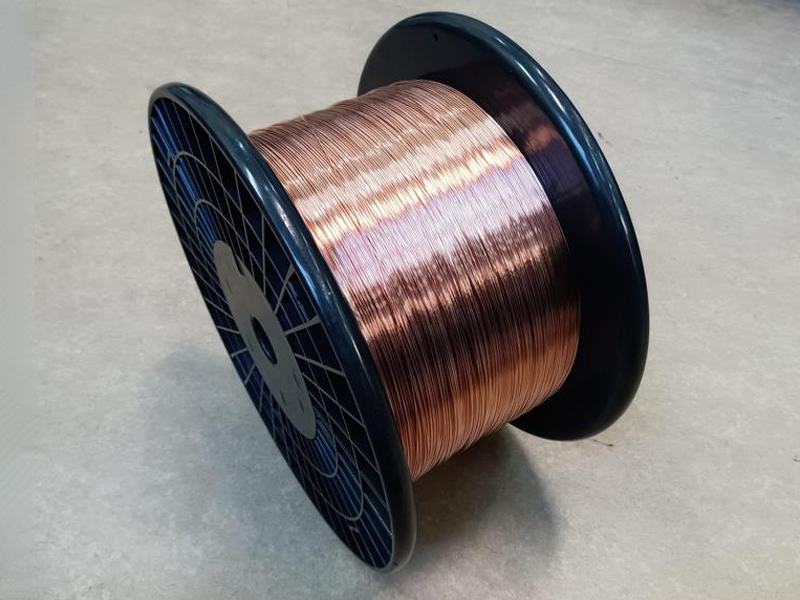

Bobbin-wounded wire	0.9mmφ	～300kgs	TSB 600bobbin is used as standard
